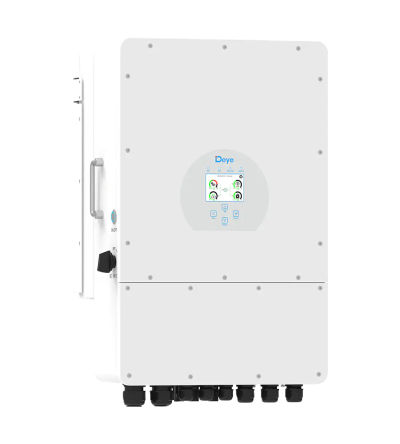

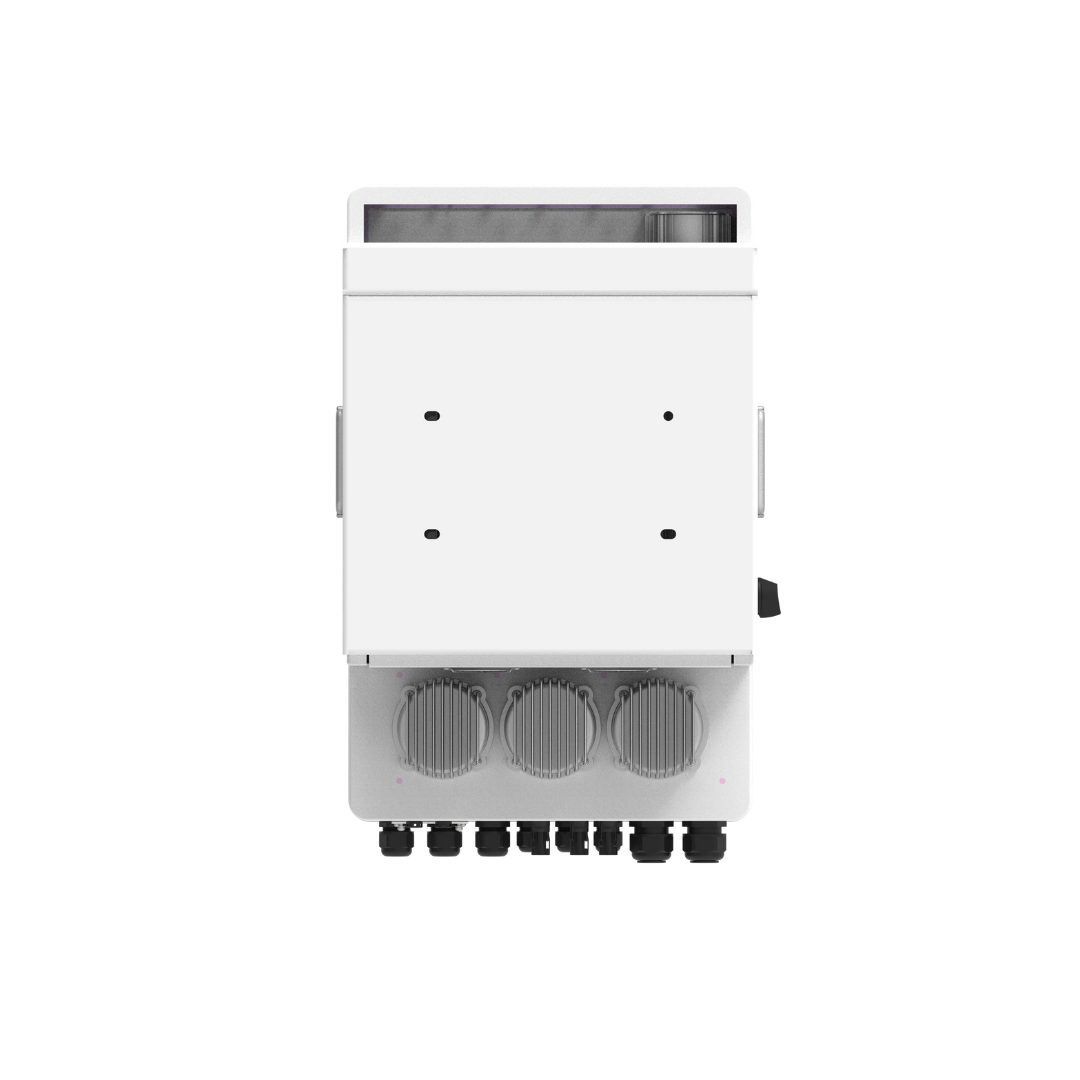

Deye 12Kw Hybrid Inverter (3 Phase)

The 12kVA SUN-12K-SG02LP1-EU-AM3 is a 12 kW three-phase hybrid inverter by Deye. It combines solar, grid, and battery power to supply electricity efficiently. It can work both on-grid and off-grid, provides backup power during outages, supports low-voltage batteries, and offers high efficiency with smart monitoring features. It’s ideal for residential and small commercial solar systems.

• SG04LP3-E

• Battery Voltage: 40-60

• Max AC Charging Amps – 240amps

• Max AC Charging Amps – 240amps

• Max PV Access Power: 24,000

• Max PV Input Power: 18,000

• Max PV Input Voltage : 800V

• Max.Operating PV.Input Current: 26+13

• Max.Input,Short.Circuit.Current: 34+17

• Start-Up voltage : 160

• MPPT Voltage Range: 200-650

• Peak Power : 24,000 Watts(for 10s Max)

• Number of Tracker 2(2string for tracker 1 + 1 string per tracker2)

• IP66 – 5year warranty
