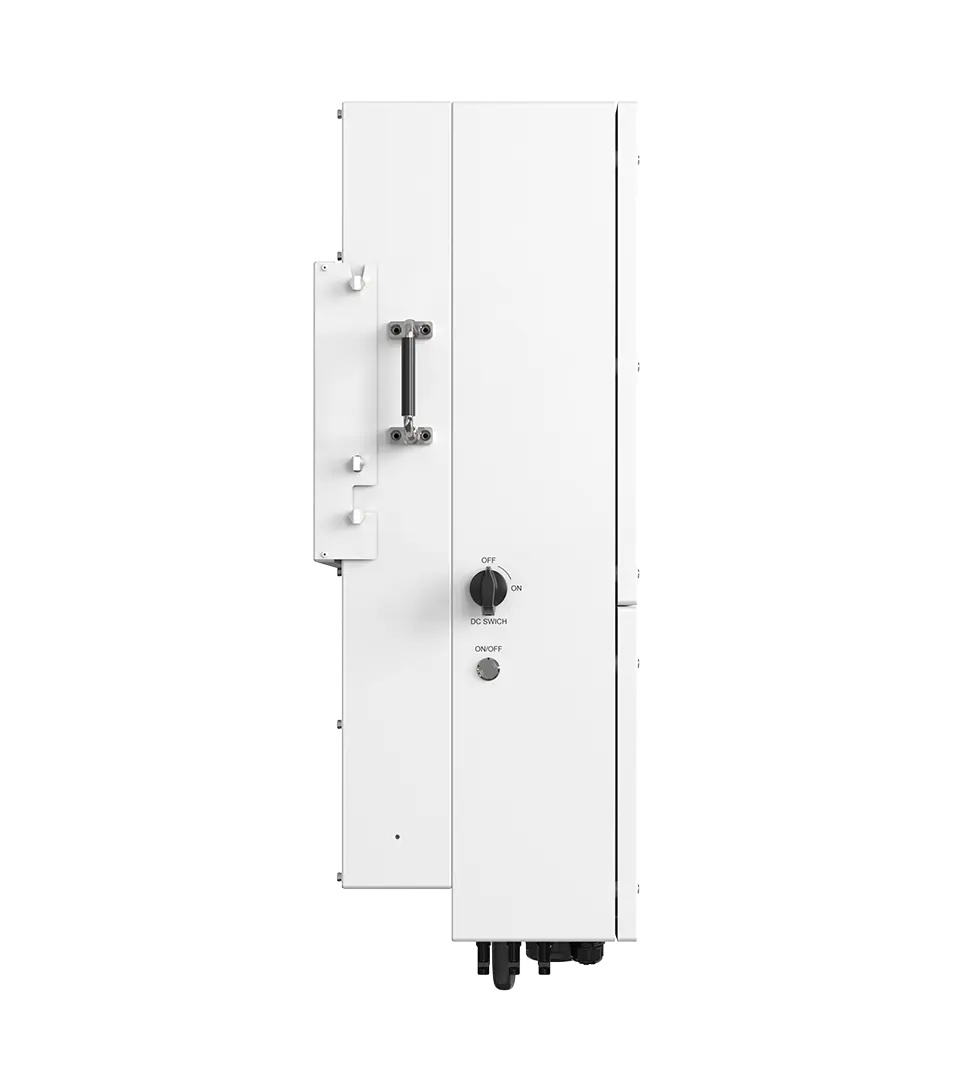

Solis 12Kw Hybrid Inverter

S6-EH1P(12-18)K03-NV-YD-L series energy storage inverter is suitable for a large residential PV energy storage system, supports up to 40A MPPT current input, suitable for 182mm/210mm solar panels; integrated battery treatment and protection functions, more friendly to batteries. It can support multiple inverters in parallel to form a single-phase or three-phase system, with a maximum power of 160kW. also support AC couple to retrofit existing solar system; Maximum 350A charging and discharging current, providing higher energy density. Intelligent and reliable, make it the first choice for a large-scale residential PV energy storage system.

• Support max 6 units in parallel, expanding system capacity

• Customizable battery backup level for uninterrupted power

• Supports PV-only off-grid operation, reducing upfront costs

• Ingress protection IP66, for operation in harsh conditions

• Smart Load management, extending backup time for critical loads

• More battery options, compatible with any battery (between 40V-60V)

• Supports existing PV grid-tied power connection for export control and off-grid use

• Supports up to 20A PV input current, compatible with future higher-power PV modules

• Supports PV input up to 160% of the inverter's rated DC power, maximising solar utilisation

• Seamless on/off-grid switching in under 10ms, guaranteeing an uninterrupted power supply

• Multiple methods of generator connection and auto control, enabling flexible local deployment

• 7-inch industrial-grade touchscreen, providing a larger, user-friendly interface for local operation

• SolisCloud: Smart remote control, AI optimisation, and instant troubleshooting - all in one platform

• 200% overload for 10s in off-grid mode, ensuring stable startup of motors, water pumps and air conditioners
